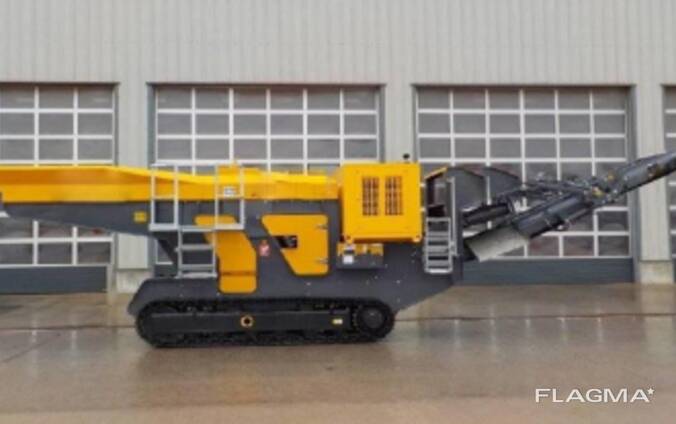

Mobile crushing plant Sumab t/h. (Sweden).
Specifications:
Mobile crusher on a caterpillar chassis with a magnetic block for sorting metal.
Jaw Crusher - 700x500mm Entry with Single Jaw (28" x 20")
Grooved cheeks 6 tons (2700 pounds)
Hydraulic wedges with spring rod lock and reverse
Drive function
Electric motor 45 kW (60 hp)
V-belt and drive pulley
Hopper - 3-sided reinforced construction, Hardox lining
Conveyor - Double electric drive 1.5 kW (2pcs. 2hp)
Magnet - electric drive 1.5 kW (2 hp)
Controls:
Electric control panel with push buttons with contactors and relays
Remote
Wireless remote control to stop/start the feeder
Controls
- Electric control panel with push buttons with contactors and relays
Plant capacity - fraction size / tons per hour
40 mm - 30-40 t/h
50 mm - 45-50 t/h
60 mm - 45-65 t/h
70 mm - 55-75 t/h
80 mm - 70-90 t/h
90 mm - 80-100 t/h
100 mm - 90-120 t/h
Information about the company:
The Swedish company Scandinavian & UK Machines is a reliable partner providing a full cycle of work on the production, supply and post-warranty service of modern concrete, construction and crushing equipment. We deliver our equipment all over the world.
